Unison research uPhono+

Le tout nouveau préampli phono, ampli casque , un joli couteau suisse à découvrir sans délai

1290,00

en stock

Produit neuf

Caractéristiques techniques

  • Garantie : 6 mois
  • Couleur : Silver

Ce produit n’est pas vendu en ligne

Merci de nous contacter pour connaitre votre revendeur le plus proche




Préamplificateur phono – ampli casque multifonctions

Finition silver ou noir

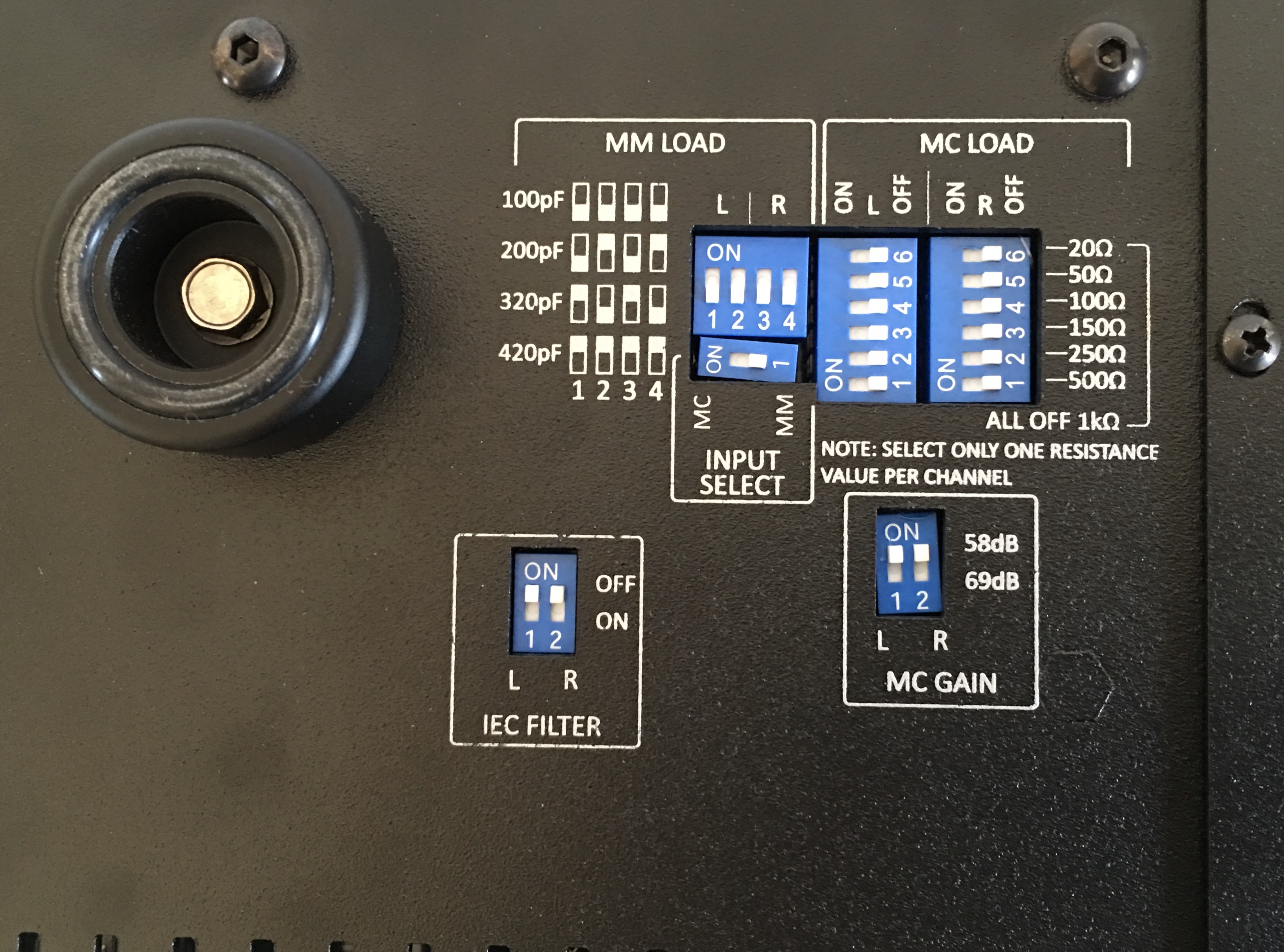

  • Moving Magnet (MM) stage gain: 38dB @ 1kHz
  • Moving Coil (MC) stage gain 58dB or 69dB @ 1kHz selectable with dip-switches
  • MM cartridge input with 4 loading capacitor values (100/200/320/420pF) selectable with dip-switches
  • MC cartridge input with 7 loading resistor values (5/10/25/100/250/500/1kOhm) selectable with dipswitches
  • Fixed level analogue output
  • Variable level analogue output: level varied with front panel volume control
  • High-current headphone stage: can be used with headphones from 16 to 600 ohms impedance
  • Subsonic IEC anti-rumble filter with override dip-switch
  • Optimized PCB layout and widespread use of SMD componentry to minimize the length of the signal path
  • Alps® «Blue Velvet» potentiometer that simultaneously adjusts the volume of the headphone stage and the level of the variable output
  • Low noise internal mains power supply with totally independent analogue and digital power supplies

uPhono+ Digital Features

  • USB 24bit/96kHz max. sample rate to record your vinyl discs on PC and save them in high-resolution formats
  • Toslink (96kHz) digital optical output
  • S/PDIF (96kHz) digital coaxial output
  • A/D conversion carried out using the Cirrus Logic CS5341 IC
  • USB asynchronous trasmission using the Bravo SA9137 IC
  • Digital optical and coaxial transmission using the TI DIT4096 IC
